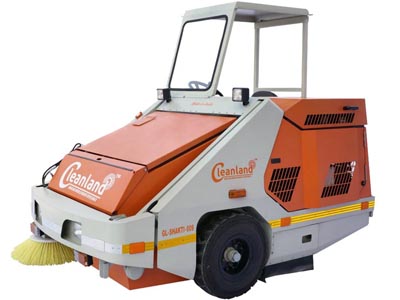

GL Shakti 009 Premium
Machine Weight: 1820 Kg.
Machine Dimension (L x W x H): 2560 x 1630 x 2010 mm
Main Broom: 1219 mm
Side Broom: 558 mm
Sweeping Width: 1523 mm
Sweeping Productivity: 184000 sq.ft./hr.
Speed: 1 to 15 Km/hr
Hopper Dust Load Capacity: 480 Kg.
Hopper Emptying Height Upto: 1560 mm
Engine Power Output: 28.8 kw@3000 RPM
Drive Cabin: Fully Covered
Operating System: Hydraulic

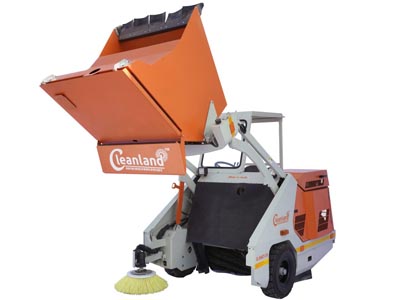

GL Shakti 009 Champion
Machine Weight: 1660 Kg.
Machine Dimension (L x W x H): 2560 x 1630 x 2010 mm
Main Broom: 1219 mm
Side Broom: 558 mm
Sweeping Width: 1523 mm
Sweeping Productivity: 184000 sq.ft./hr.
Speed: 15 Km/hr
Hopper Dust Load Capacity: 480 Kg.
Hopper Emptying Height Upto: 1560 mm
Engine Power Output: 28.8 kw@3000 RPM
Drive Cabin: Roof Type
Operating System: Hydraulic

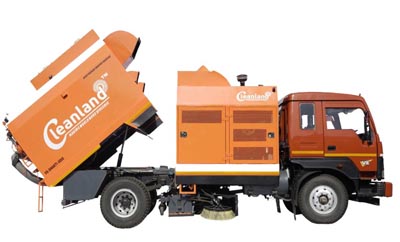

One Horizontal Brush: 1900 mm
1 Horizontal Brush & 2 Side Brushes: 3000 mm
Sweeping Capacity: 30000 sq. mt/hr
Hopper Storage Capacity: 6000 Kg.
Sweeping speed: 1-10 Km/Hr.
Engine: Kirloskar Water Cooled Diesel Engine
Power: 105 H.P. @ 2200 RPM
Cylinder: 4 Cylinder
Main Brush: 2200 mm
Side Brush: 650 mm (Diameter)
Hyd. Oil Tank: 60 Ltr.
Dust Control System:High Efficiency Filtration & Automatic Filter Cleaning System Through Pulse Jet Air
Hydraulic Vibrator:Provided in Filter Chamber to clean The Filter in case of heavy chocking
Water Spray System:Water Spray Nozzles Provided with highly pressure water pump
Water Tank:500 Ltr.
Suction Fan:High Efficiency Dynamically balanced multi bladed vacuum fan driven by auxiliary engine through V-Belt
CCD Camera System:On Sweeping head & rear of machine
Vacuum Hose Diameter:150 mm
Vacuum Hose Length:15 Ft.

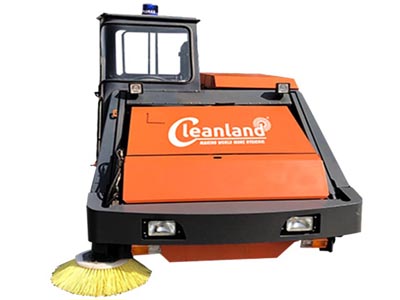

GL Shakti 009 Premium Plus
Machine Weight: 2075 Kgs.
Machine Dimension (L x W x H): 2689x1727x1406 mm
Main Broom: 1422 mm.
Side Broom: 660 mm.
2nd Side Broom: Optional
Sweeping Width: 2082 mm.
Sweeping Productivity: 217800 Sq Ft/Hr.
Speed: 1 to 15 Km/Hr
Hopper Dust Load Capacity: 907 Kgs/0.85 Cubic Mtr.
Hopper Emptying Height Upto: 1560 mm.
Engine Power Output: 45 kw @ 3000 RPM
Drive Cabin: Fully Covered
Operating System: Hydraulic
